TH2828 Precision LCR Meter |
Test Frequency: 20 Hz-1MHz
Test Level: 10 mV-20.0 V,10 mV steps
Test Parameter: |Z|,C, L, X, R, D, Q, θ
Basic Accuracy: 0.05%
Correction :Open,short and load corrections
Measuring Speed:Slow: 1.5 meas/sec,
Medium: 10meas/sec, Fast: 30 meas/sec
Interface:RS-232C, HANDLER, GPIB (Optional) |
 |
 |
|

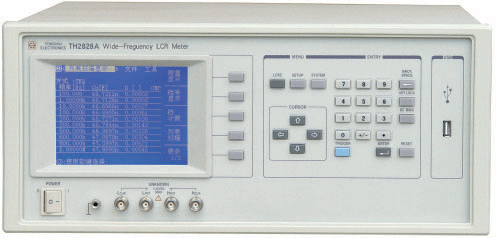

TH2828A Wide-Frequency LCR Meter |
Test Frequency: 20 Hz-1MHz
Test Level: 10 mV-20.0 V,10 mV steps
Test Parameter: |Z|, C, L, X, R, D, Q, θ
Basic Accuracy: 0.10%
Correction :Open,short and load corrections
Measuring Speed:Slow: 1.5 meas/sec,
Medium: 10meas/sec, Fast: 30 meas/sec
Interface:RS-232C, HANDLER, GPIB (Optional) |
|
 |
|

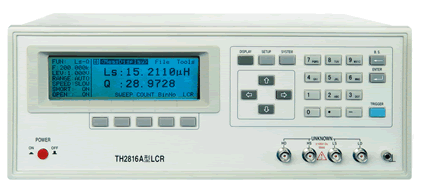

TH2816A Precision LCR Meter |
Test Frequency: 50 Hz-200 kHz
Test Level: 10 mV-2.0 V,10 mV steps
Test Parameter: |Z|, C, L, X, R, D, Q, θ
Basic Accuracy: 0.05%
Correction :Open,short and load corrections
Measuring Speed:Slow: 1.5 meas/sec,
Medium: 10meas/sec, Fast: 30 meas/sec
Interface:RS-232C, HANDLER, GPIB (Optional) |
|
|
|
|
TH2817A Precision LCR Meter |
Test frequency:50 Hz-100 kHz,16 points
Test Level:10 mV to 2 V,10 mV resolution
Test Parameter: |Z|, C, L, X, R, D, Q, θ
Basic Accuracy: 0.05%
Basic Accuracy:open and Short zeroing
Measuring Speed(meas/sec):Slow:2,Med:10,Fast:30
Output Impedance:30 Ω and 100 Ω selectable |
|
 |
|
TH2819 Precision LCR Meter |
Test Farameter: 20 Hz-00 kHz
Test Level: 5 mV-2 V
Test parameter: |Z|, |Y|, C, L, X, R, G, D, Q, θ
Basic Accuracy: 0.05%
Correction :Open?Short and load
Equivalent :series and Parallel
Output Impedance: :30 Ω, 100 Ω Selectable
Comparator function:10 bins and bin counters |
|
 |
|
TH2816 Wide Frequency LCR Meter |
Test Farameter:20 Hz-150 kHz,frequency points
Test Level:10 mV to 2.55 V,10 mV resolution
Test parameter:|Z|, |Y|, C, L, X, B, R, G, D, Q, θ
Basic Accuracy: 0.05%
Measuring Speed(meas/sec):Slow:1.4,Med:4.2,Fast:11
Up to 25 V internal DC bias
10 Bins and Bin Counters,GO/NO GO Display
Ineterface:RS-232C,HANDLER(Optional),PRINTER GPIB(Optional) |
|
 |
|
TH2823 / TH2823A LCR Meter |
Test Farameter: 100 Hz, 120 Hz, 1 kHz, 10 kHz
Test Level:0.1 V?0.3 V?1 V
Test parameter: L-D, C-D, |Z|-Q, |Z|-D
Basic Accuracy: 0.25%
Measuring Speed(meas/sec): Slow 1.5, Med 5.1, Fast:20
4 Bins and Bin Counters,GO/NO GO Display
Ineterface:RS-232C, HANDLER, PRINTER |
|
 |
|

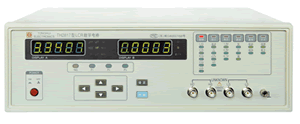

TH2817 LCR Meter |
Test Farameter: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 40 kHz, 100 kHz
Test Level:0.1 V, 0.3 V, 1 V
Test parameter: L-D, C-D, |Z|-Q, |Z|-D
Basic Accuracy: 0.05%
Measuring Speed(meas/sec): Slow 1.5, Med 5.1, Fast:20
4 Bins and Bin Counters,GO/NO GO Display
Ineterface:RS-232C, HANDLER, PRINTER |
|
 |
|

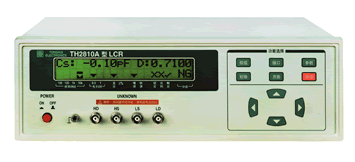

TH2810A LCR Meter |
Test Farameter:100 Hz, 120 Hz, 1 kHz, 10 kHz
Test Leve: 0.3 V, 1 V
Test parameter: L-Q, C-D, R-Q, Z-Q
Basic Accuracy: 0.1%
Measuring Speed(meas/sec):Slow:4.2meas/sec
Fast:7.2meas/sec
Comparator function:4 Bins,Sound alarm with P1 BIN
Ineterface:HANDLER RS-232C |
|
 |
|

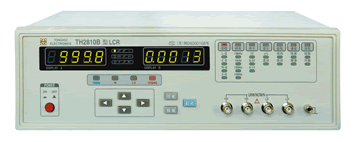

TH2810B LCR Meter |
Test Farameter: 100 Hz, 1 kHz, 10 kHz
Test Level: 0.1 V, 0.3 V, 1 V
Test parameter: L-Q, C-D, R-Q, Z-Q
Basic Accuracy: 0.1%
Measuring Speed(meas/sec): Slow 4.5,Fast:15
Comparator function:4 Bins,Alarm bin:P1 or Bins,Alarm Bin:PASS
Ineterface:HANDLER RS-232C
. |
|
 |
|
TH2811C LCR Meter |
Test Farameter: 100 Hz, 1 kHz, 10 kHz
Test Leve: 0.3 V
Test parameter: L-Q, C-D, R-Q
Basic Accuracy: 0.25%
Measuring Speed(meas/sec):4 -5 meas/sec
Equivalent Circuit:Series and parallel
Display mode:Direct
. |
|
|
|
TH2812C LCR Meter |
Test Farameter: 100 Hz, 120 Hz, 1 kHz
Test Leve: 0.3 V
Test parameter: L-Q, C-D, R-Q
Basic Accuracy: 0.25%
Measuring Speed(meas/sec):4 -5 meas/sec
Equivalent Circuit:Series and parallel
Display mode:Direct
. |
|
 |
|
TH2820 LCR Meter |
Test Farameter: 100 Hz, 120 Hz, 1 kHz
Test Leve: 0.3 V
Test parameter:L-Q, C-D, R-Q, Z-Q, Z-D
Basic Accuracy: 0.3%
Measuring Speed(meas/sec):3 meas/sec
Equivalent Circuit:Series and parallel
20×2 Large character LCD display with back-light
. |
|
 |
|
TH2821 Portable LCR Meter |
Test Farameter: 100 Hz, 120 Hz, 1 kHz
Test Leve: 0.3 V(1±10%)
Test parameter: L-Q, C-D, R-Q, Z-Q
Test parameter: 0.3%
Measuring Speed(meas/sec):3 meas/sec
Equivalent Circuit:Series and parallel
Comarator Function:4 Bins:NG, P1, P2, P3
. |
|
|
|
|
