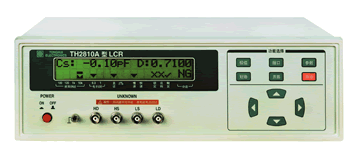

TH2810A LCR Meters
Features:

Improved middle-class LCR meter
20×2 large character LCD display with back-light
Easy operation with strong functions
Good Readout stability
4 Bins comparator and HANDLER interface
RS-232C interface
Optional operation software
Brief Introduce:
TH2810A is a universal LCR meter with high accuracy and wide test range. The instrument provides 4 test frequencies up to 10 kHz, 20×2 large characters LCD display and easy operation. So it can be used for incoming inspection, quality control of product line and laboratory use. The HANDLER and RS-232C interfaces can be used to build an automatic test system, communicate with the computer and record test results.
.
Specifications:
Test Parameter
L - Q, C - D, R - Q, Z - Q
Test Frequency
100 Hz,120 Hz,1 kHz,10 kHz
Test Level
0.3 Vrms ,1 Vrms
Basic Accuracy
0.1%
Display Range
|Z|, R    0.0001 Ω — 99.999 MΩ
C         0.01 pF — 99999 µF
L         0.01 µH — 9999.9 H
D         0.0001 — 9.999
Q         0.0001 — 9999
Δ%       0.01% — 9999%
Measuring Speed
Fast: 7.2, Slow: 4.2
Equivalent Circuit
Series and Parallel
Ranging Mode
Auto and Hold
Trigger Mode
Internal, Manual and External
Correction Function
Open and Short,single and multi frequency Zeroing
Measurement Terminals
5 Terminals
Display Mode
Direct,Δ%
Display digits
20×2 LCD
Primary and secondary display: 5 digits
Output Impedance
30 Ω Min,different with every range
Comparator Function
4 Bins, Sound alarm with P1 Bin.
Interface
RS-232C, HANDLER

General Specifications:
Operation Temperature And Humidity 0°C to 40°C, less than 90% RH
Power Requirements 198 V to 242 V AC, 47.5 Hz to 52.5 Hz
Power Consumption less than 20 VA
Dimensions(W×H×D) 350 mm×110 mm×340 mm
Weight 3.5 kg Approx

Ordering Information:
TH2810A LCR Meter

Instrument Accessories:
TH26001 4 terminal test fixture
TH26012 4 terminal Kelvin clip leads
TH26010 Gilded shorting plate

Options:
TH26005 4 terminal test fixture
TH26006 Axial component test module (used with TH26005)
TH26007 Core inductor test fixture
TH26008 SMD component test fixture
TH26009 SMD Kelvin test tweezers
TH26004-1 4 terminal Kelvin test clip leads
TH26011 4 terminal Kelvin clip leads
TH12010 RS-232C control software
