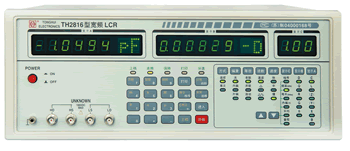

TH2816 Wide Frequency LCR Meters
Features:
  • 20 Hz to 150 kH frequency range
  • Level Voltage from 0.01 V to 2.55 V programmable
  • Up to 25 V internal DC bias
  • 10 bins and bin counters
  • Direct, ΔABS and Δ% display modes
  • Auto LCR measurement
  • key lock function
  • Display digits setup for primaty and secondary parameters
Brief Introduce:
TH2816 is a high accuracy LCR meter for quality control of product line,incoming inspection and laboratory use over a wide range of frequencies (20 Hz to 150 kHz)and test signal level (0.01 V to 2.55 V)with 6 digit resolution for both primary and secondary parameters.The HANDLER,GPIB,RS-232C and PRINTER interfaces can be used to build an automatic test system,communicate with the computer and record test results

Specifications:
Test Parameter |Z|, |Y|, C, L, X, B, R, G, D, Q, θ
Test Frequency 20 Hz to 150 kHz,3023 frequency points
Test Level 10 mVrms to 2.55 Vrms,10 mV resolution
Basic Accuracy
 0.05%
Display Range |Z|, R, X 0.00001 Ω to 999.999 MΩ
|Y|, G, B 0.00001 µs to 99.9999 s
C 0.00001 pF to 999999 µF
L 0.00001 µH to 9999.99 H
Q, D 0.00001 to 99999.9
θ -90.0000°to 90.0000°
Measuring Speed
 Slow: 1.4 meas/sec, Medium: 4.2 meas/sec, Fast: 11 meas/sec
Equivalent Circuit
 Series,Parallel and Auto
Ranging Mode
Auto and Hold
Trigger Mode
Internal,Manual and Extrenal
Averaging Rate
1 to 20
Correction Function
 Open/Short,single and multi frequency zeroing
Measurement Terminals
5 Teminals
Display Mode
Direct, Δ , Δ%, V/I( V/l Monitor)
DC Bias
Internal Bias: 0 to 25V,0.1 V resolution
External Bias: 0 to 100 V
Comparator Function
10 Bins and Bin counters, GO/NO GO display
Interface RS-232C, PRINTER, GPIB(Optional), HANDLER(Optional)

General Specifications:
Operation Temperature And Humidity 0°C to 40°C, less than 90% RH
Power Requirements 198 V to 242 V AC, 47.5 Hz to 52.5 Hz
Power Consumption less than 40 VA
Dimensions(W×H×D) 395 mm×155 mm×420 mm
Weight 6 kg Approx

General Specifications:
Operation Temperature And Humidity 0°C to 40°C, less than 90% RH
Power Requirements 198 V to 242 V AC, 47.5 Hz to 52.5 Hz
Power Consumption 80 VA max.
Dimensions(W×H×D) 430 mm×185 mm×473 mm
Weight 13 kg Approx

Ordering Information:
TH2816 Wide Frequency LCR Meter

Instrument Accessories:
TH26005 4 terminal test fixture
TH26011 4 terminal Kelvin test clip leads
TH26010 Gilded Shorting plate

Options:
TH26001 4 terminal test fixture
TH26006 Axial component test module (used with TH26005)
TH26007 Core inductor test fixture
TH26008 SMD component test fixture
TH26009 SMD Kelvin test tweezers
TH26012 4 terminal Kelvin test clip leads
TH10001 GPIB Interface Board
TH10201 HANDLER interface board
TH11005 GPIB control software
TH12005 RS-232C control software
