Features:
 240×64 dot-matrix graphics LCD
display
Friendly
user's interface and easy operation.
Over 12,000 frequency points available from 50 Hz to 200 kHz (TH2816A)
16 typical frequency points available from 50 Hz to 100 kHz (TH2817A)
Programmable signal voltage level from 10 mVrms to 2.0 Vrms
World-level stability and accuracy
6 digit readout resolution
Up to 30 meas/sec measurement
rate
Precision LOAD
correction function
Selectable signal source output impedances: 30 Ω, 100 Ω
Direct control function for TH1773/TH1775 DC bias source
List sweep function for up to 4 frequencies, signal levels and DC bias
levels
Direct, ΔABS and Δ% display modes
12 control setting files
memory
Built-in comparator, 10 Bins and bin counters (TH2816A)
Built-in comparator, 4 Bins and bin counters (TH2817A)
Test
signal level monitor function
Key lock function
HANDLER interface
RS-232C
and optional GPIB interfaces
|
Brief
Introduce:

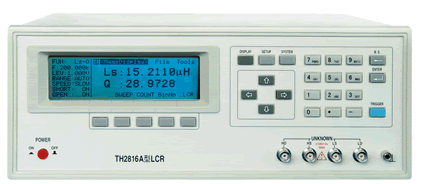

TH2816A/TH2817A is a new precision LCR meter
combined with years of technical experience and newest measurement technology of
instrument industry. With powerful measurement functions, high performance and
low cost, TH2816A/TH2817A has been one of the world advanced instruments, and it
provides users a super value measurement resolution and experience.
TH2816A/TH2817A offers stable 6 digit resolution, wide frequency range (50 Hz to
100 kHz for TH2817A and 50 Hz to 200 kHz for TH2816A), programmable signal level
(0.01 V to 2.0 V), up to 30 meas/sec measurement rate, 9 measurement range, 30 Ω
or 100 Ω constant output impedance and friendly operation interface.
TH2816A/TH2817A can be used for incoming inspection of components, quality
control of product line and high accuracy laboratory use. The HANDLER, GPIB,
RS-232C interfaces make it easy to build an automatic component test system,
communicate with the computer and record the test results.
|
Specifications:
|
|
Test Parameter
|
|Z|, C, L, X, B, R, G, D, Q, θ
|
|
Display
|
240×64 dot-matrix LCD display, 6 digit
resolution
|
|
Test Frequency
|
TH2816A
|
50 Hz to 200 kHz, over 12,000 points
|
|
TH2817A
|
50 Hz, 60 Hz, 100 Hz, 120 Hz, 200 Hz, 400 Hz, 500 Hz, 1 kHz, 2
kHz, 4 kHz, 5 kHz, 10 kHz, 20 kHz, 40 kHz, 50 kHz and 100 kHz, 16 points
|
|
Test Level
|
10 mVrms to 2.0 Vrms, 10 mV steps
|
|
Basic Accuracy
|
0.05% |
|
Display Range
|
|Z|, R, X: 0.00001 Ω 99.9999 MΩ
G, B: 0.00001
µS 999.999 S
C: 0.00001 pF 999.999 mF
L:
0.00001 µH 9.99999 kH
Q: 0.00001 99999.9
D:
0.00001 9.99999
θ(DEG): -179.999°
179.999°
θ(RAD): -3.14159
3.14159
Δ%: -99.9999% 999.999%
|
|
Measuring Speed
|
Slow: 1.5 meas/sec, Medium: 10 meas/sec, Fast: 30
meas/sec
|
|
Equivalent Circuit
|
Series and Parallel
|
|
Ranging Mode
|
Auto and Hold
|
|
Trigger Mode
|
Internal, Manual, External and Bus
|
| Averaging Rate |
1 255 |
|
Correction Function
|
Open, Short and Load corrections
|
|
Measurement Terminals
|
5 Terminals
|
|
Display Mode
|
Direct, ΔABS, Δ%, V/I( V/I monitor), Bin number and bin
counter
|
|
List Sweep
|
List sweep for up to 4 frequencies, signal levels and DC bias
levels
|
|
Comparator Function
|
TH2816A
|
10 Bins (BIN1 to BIN9 and OUT of bins), and additional AUX
bin
|
|
TH2817A
|
4 bins (BIN1 to BIN3 and OUT of bins), and additional AUX
bin
|
|
Memory
|
12 control settings memory for store/recall
|
|
Interface
|
RS-232C, HANDLER, GPIB (Optional)
|
General Specifications:
| Operation Temperature And Humidity |
0°C to 40°C, less than 90% RH |
| Power Requirements |
198 V to 242 V AC, 47.5 Hz to 52.5 Hz |
| Power Consumption |
less than 50 VA |
| Dimensions(W×H×D) |
350 mm×135 mm×400 mm |
| Weight |
4.5 kg Approx |
Ordering
Information:TH2816A/TH2817A Precision LCR
Meter
Instrument
Accessories:TH26005 4 terminal test fixture TH26011 4
terminal Kelvin test clip leads TH26010 Gilded Shorting plate
Options:TH26001 4 terminal test
fixture TH26006 Axial component test module (used with TH26005) TH26007
Core inductor test fixture TH26008 SMD component test fixture TH26009 SMD
Kelvin test tweezers TH26012 4 terminal Kelvin test clip leads TH26033
GPIB interface cable TH26034 RS-232C interface cable TH10001 GPIB
Interface Board TH11003 GPIB control software(TH2816A) TH12003 RS-232C
control software(TH2816A) TH11004 GPIB control software(TH2817A) TH12004
RS-232C control software (TH2817A)
|
