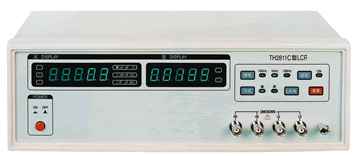

TH2811C / TH2812C LCR Meters
Features:

Universal low price LCR meter
Standard functions
Short and Open correction
Simple operation
Good measurement stability
Brief Introduce:
TH2811C/TH2812C is a high accuracy LCR meter using 5 terminal measurement technology. The primary and secondary parameters are displayed at the same time with 0.01% display resolution. With its low price, direct functions and simple operation, it can be used for incoming inspection, quality control of the product line and electronic maintenance service.

Specifications:
  TH2811C TH2812C
Test Parameter
L - Q, C - D, R - Q
Display
100 Hz,1 kHz,10 kHz
 100 Hz,120 Hz,1 kHz
Test Level
0.3 Vrms
Basic Accuracy
0.25%
Display Range
R 0.0001 Ω — 99.99 MΩ
C 0.01 pF — 19999 µF
L 0.01 µH — 9999 H
D 0.0001 — 9.999
Q 0.01 — 999
 R 0.0001 Ω — 99.99 MΩ
C 0.1 pF — 19999 µF
L 0.1 µH — 9999 H
D 0.0001 — 9.999
Q 0.01 — 999
Measuring Speed
about 5 meas/sec
Equivalent Circuit
Series and Parallel
Ranging Mode
Auto and Hold
Correction Function
Open and Short Zeroing
Measurement Terminals
5 Terminals
Display Mode
Direct

General Specifications:
Operation Temperature And Humidity 0°C to 40°C, less than 90% RH
Power Requirements 198 V to 242 V AC, 47.5 Hz to 52.5 Hz
Power Consumption less than 20 VA
Dimensions(W×H×D) 350 mm×110 mm×340 mm
Weight 3.5 kg Approx

Ordering Information:
TH2812C/TH2812C LCR Meter

Instrument Accessories:
TH26001 4 terminal test fixture
TH26004-1 4 terminal Kelvin test clip leads
TH26010 Gilded Shorting plate

Options:
TH26005 4 terminal test fixture
TH26006 Axial lead component test module (used with TH26005)
TH26007 Core inductor test fixture
TH26008 SMD test fixture
TH26009 SMD Kelvin test tweezers
TH26011 4 terminal Kelvin test clip leads
TH26012 4 terminal Kelvin test clip leads
