Features :
|
 Auto balancing bridge method with the widest
impedance measurement range
4-terminal pair configuration to eliminate electromagnetic coupling of test
leads
Basic accuracy:
0.05%(TH2828), 0.1%(TH2828A)
Maximum Test frequency up to 1 MHz
AC Test Signal programmable up to 20 V(optional)
Maximum measurement speed up to 30
meas/sec
6-digit display
resolution
22 parameter
combinations available
Output Signal Impedance: 30 Ω and 100 Ω selectable
10 points list sweep function
Internal DC bias source ±40 V/100
mA(optional)
External DC
bias up to 40 A (optional two paralleled TH1775)
Automatic level control function
(ALC)
Test signal level
monitor function
20 control
setting files can be saved in the internal non-volatile memory
Built-in comparator: 10 Bins and Bin
counters
RS232C, GPIB and
HANDLER interface
2 m/4 m
cable length extension (optional for TH2828 only)
USB interface for saving files in the
external USB DISK(for TH2828 only)
320×240 dot-matrix large graphics LCD display
Chinese and English language user
interface selectable
|
TH2828
TH2828A
|
|
Brief Introduce
:
TH2828/TH2828A is a new generation impedance test instrument with the most
advanced technique of auto balancing bridge in the world. It fulfills all
themeasurement needs for components and materials with its high basic accuracy
(0.05%/0.1%), wide frequency range (from 20 Hz to 1 MHz) and impedance
range (up to 100 MΩ). The instrument is especially suitable for low dissipation
factor (D) capacitor and high quality factor (Q) inductor measurement.
The high power measurement conditions of up to 20 V test signal level and
40 A DC bias current and list sweep function make it easy to extend user
is capability ofcomponent evaluation. Four-terminal pair terminal configuration
which eliminates the electromagnetic coupling of test leads, extends the
low impedance measurement range ten times down of the normal five-terminal
configuration instrument. TH2828/TH2828A is a powerful tool for component
design, component inspection, quality control and measurement on production
line. It is also a powerful tool for design and research of circuit and
materials (electronic material and non-electronic material). With its excellent
performance, TH2828/TH2828A is in conformity withcommercial and military
standards, for example IEC and MIL standards.
Various Measurement Device
:
Passive: Impedancemeasurement of capacitor, inductor, mageneticcore, resistor,
transformer, chip module, network component , etc.
Semiconductor: Varactor C-V characteristic,parasitic parameter analysisof transistor and IC.
Others: Impedance evaluation of PCB, relay, switch,cable, battery,etc.
Dielectric Material: Permittivity and dissipation angle evaluation of plastic, ceramic, etc.
Magnetic Materrial: Magneto conductivity and dissipation angle evaluation of ferrite,non-crystal materials.
Semiconductor Material: Permittivity,conductivity and C-V characteristics of semiconductor materials.
LCD Material: Permittivity, elasticity and C-V characteristics of LCD unit.
Discovery the mumlti-characteristic Of hductor
:
With its wide test frequency (20Hz-1MHz)and excellent performance, TH2828/TH2828A can accurately analyze the characteristics of inductor and magnetic materials.
By using the optional TH103011(100mA DC bias source), TH2828 / TH2828A can accurately analyze high frequency inductor, communication transformet and filter unde low DC bias current.By suing TH1775 DC Bias Current Source. THE2828 / TH2828A cn analyze high power and current inductior unde a DC bias current up to 40A.
Accurate Measurement for Ceramic Capacitor
:
Ceramic material and capacitor are mainly measured under 1 kHz and 1 MHz.Most
ceramic capaciltors are of low dissipation factors. The C and D parameters
of a ceramic capacitor vary obviously with the test signal level.
With its wide test frequency, high accuracy, 6-digit resolution and automatic
level control function(ALC), TH2828/TH2828A can measure the ceramic capacitor
and material accurately and rellably.
Capacitance Characteristic Measurement for LCD Unit
:
Capacitance-Voltage(C-Vac)characteristic is the main charactiristic used to evaluate a LCD meaterial. For C-Vac measurement,general instrument has a weakness,whose maximum test voltage level is not high enough.
TH2828/th2828a with the Optional TH10301 can provide a programmable test
signal voltage up to 20 Vrms with 1% resolution. So TH2828/TH2828A can
measure the C-Vac characteristic of a LCD material unde the most suitable
condition you need.
Measurement for Semiconductor Material and Component
:
Oxide-layer capacltance(Cox)and semiconductor impurity density are the
main characteristics to evaluate a MOSFET.All of these parameters can be
calculated from the measurement result of C-Vdc.
With its wide test frequency(20 Hz to 1 MHz)and internal ±4040V programmable DC Bias Source, TH2828/TH2828A can measure the C-Vdc easlly.
The extended cable and probe are needed for measuring semiconductor component on siticon-water.The optional 2m/4m extended cable can efficiently reduce the error due to cable extension. THE2828/TH2828A can also measure the parasitic parameters of diodes and transistors.
R&D of New Materials and Components
:
The basic measurement accuracy of 0.05% / 0.1% greatly increases the measurement reliability of TH2828/TH2828A.With its 6-digit resolution, the instrument can identify the slight change of a component,especially for measuring the low dissipation capacitor.
Enhancing Production Line Efficiency
:
The high measurement speed (30meas/sec) can greatly increase test throughput.
The built-in comparator, cable length compensalion and HANDLE interface make it easy to build an automatic component test system.
The internal non-volatile memory and USB disk can save the setting time and reduce operation errors.
Various Applications for Quality Control and Assurance
:
With the wide test frequency(20Hz to 1 MHz) and test signal voltage(5mVrms-20Vrms),TH2828/TH2828A
can fulfill the measurement needs of most components.
TH10301 and TH1775 solve the problem of DC Bial measurement.
Various test fixtures are available for axial,radial and SMD components
test.

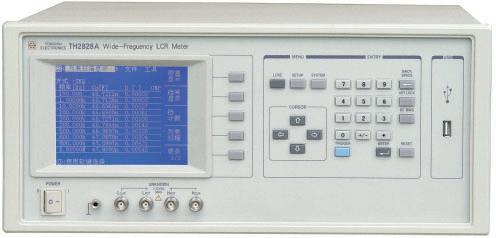

Simple Operation of front panel
:
All control settings, softkeys and monitor information are directly displayed
on the 320x240 dot-matrix large LCD. The interactive softkeys make the
key operation simple and efficient.
Non-volatile Memory for Storing Measurement Settings
:
TH2828/TH2828A build-in non-volatile memory cna save 20 control setting
files. The USB disk (TH2828 only) makes it pollible that the setting files
can be shared by more intruments. Doing so will greatly reduce operation
error and enhance ificiency.
Flexible Data Communication modes
:
TH2828/th2828a GPIB interface (optional for THE2828A) makes it possible
to bluild an automatic component test system and communicate with each
other. On the other hand the low cost RS232 interface makes it easy to
communicate with a computer.
|
| |
|

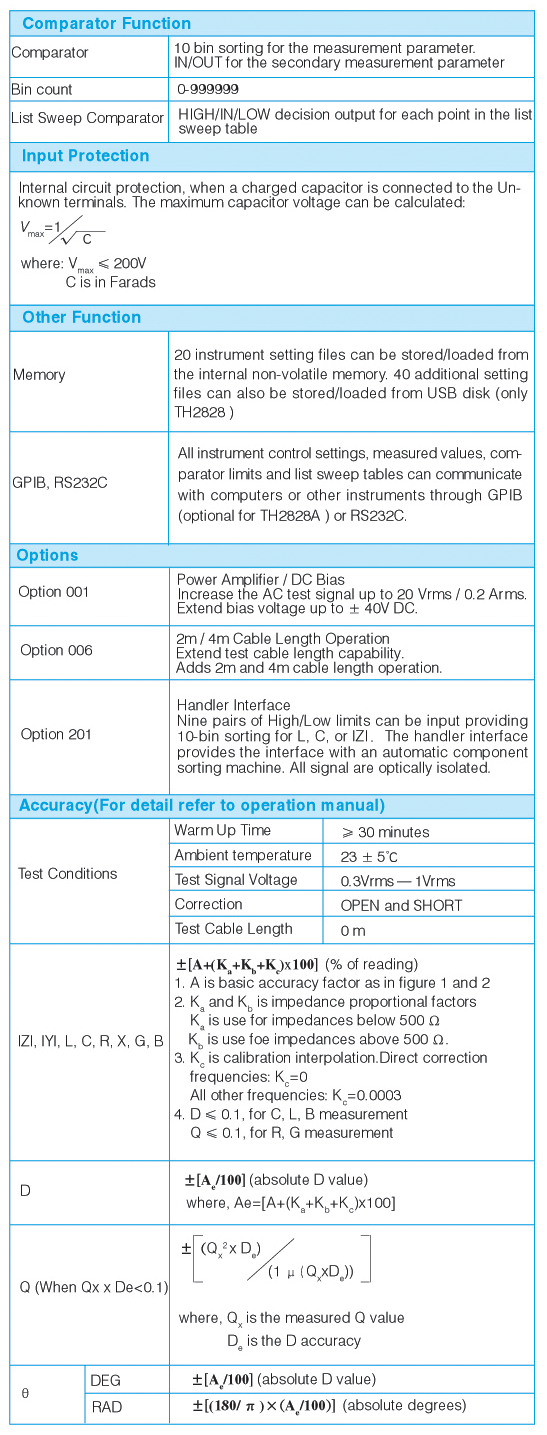

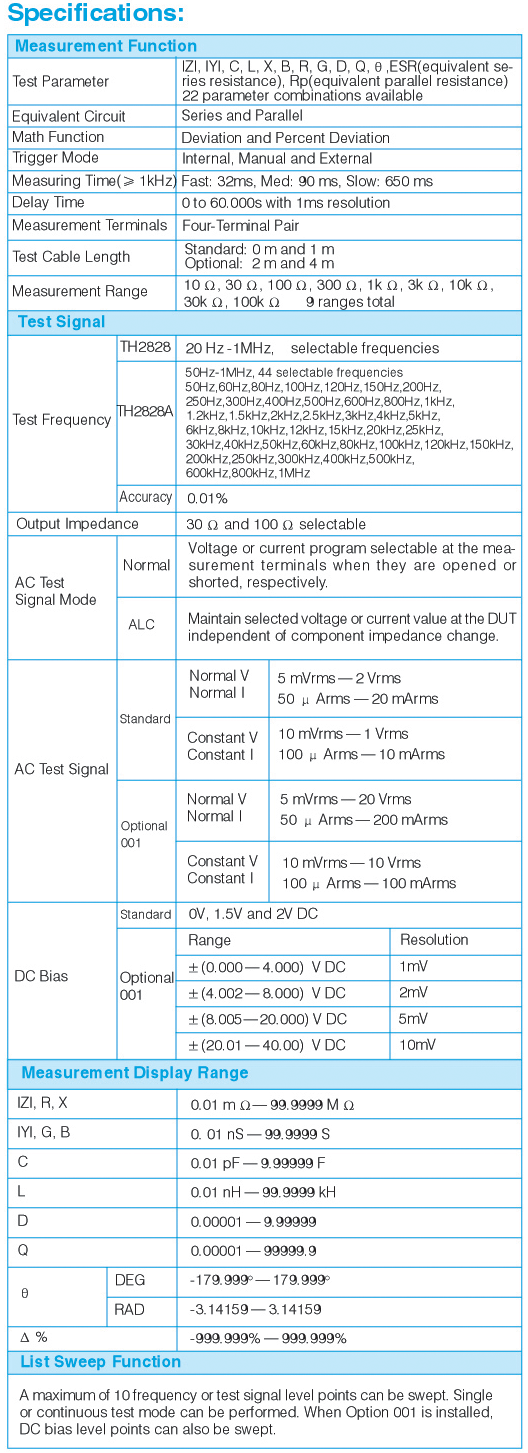

General Specifications:
| Operation Temperature And Humidity |
0°C — 40°C, ≤90% RH |
| Power Requirements |
198 V — 242 V AC,99 V-121 V AC 47.5 Hz — 63
Hz |
| Power Consumption |
≤100 VA |
| Dimensions(W×H×D) |
430 mm×185 mm×473 mm |
| Weight |
15 kg Approx |
|
|
|
|
|
Ordering Information:
TH26001 4terminal test fixture
TH26006 Axial component test module
TH26007 Core inductor test fixture
TH26008 SMD component test fixture
TH26009 SMD Kelvin test tweezers
TH26012 4 terminal Kelvin test clip leads
TH10301 20Vrms/40V DC, 20Vrms/40V DC power amplifier / DC bias board
TH10401 2m/4m cable length operation(TH2828 only)
TH10002 GPIB interface board
TH10202 Handler/Scanner interface board
TH11014 TH2828 GPIB control software
TH11015 TH2828A GPIB control software
TH12019 TH2828 RS232C control software
TH12020 TH2828A RS232C control software
|
|
