This dispenser can be used to evenly apply solder paste on to fine IC pads
on circuit boards, a necessary tool for prototyping or repairing.
Injection dosage and time can be controlled by adjusting the air pressure,
choosing an appropriate duration and needle. Mini foot pedal for convenient

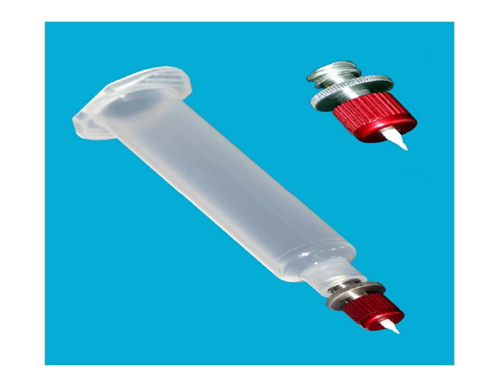

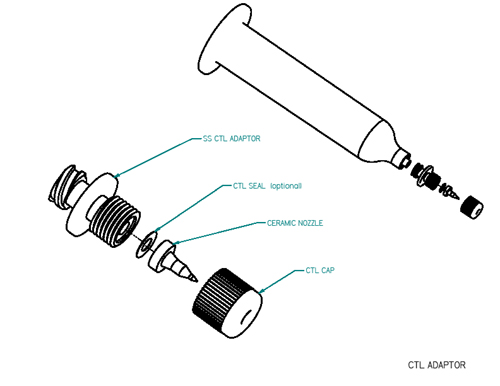

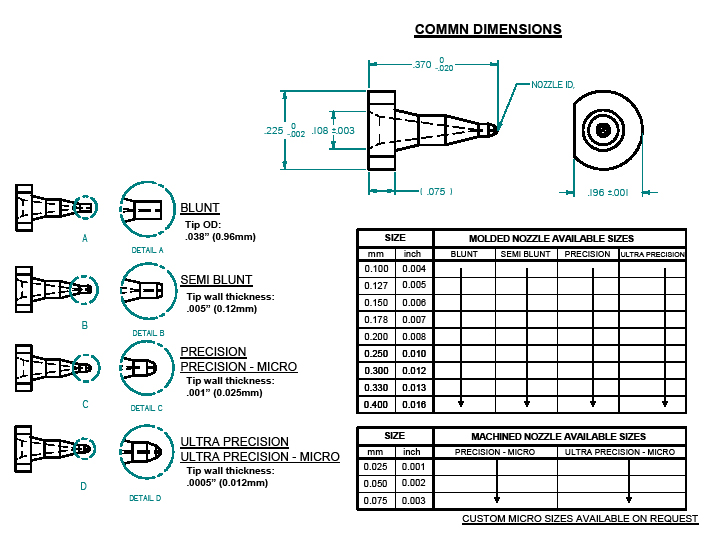

operation. Various nozzles to suit different needs.
User's manual.
Specifications:
l
Timing:
0.01-1S; 1-10S; 2-20S; 3-30S programmable.
l
Accuracy:
0.5%.
l
Mini injection dosage: 0.01mL.
l
Input air pressure: 2.5-7bar(35-100psi).
l
Output air pressure: 0.7-7bar(1-100psi).
l
Dimension: 238x150x60mm.
l
110V power supply. 220V model also available.
