Picture Model MD-150DS MD-250DS MD-300DS MD-350PC Features IR preheating, PID control, temperature variation<±2°C Stainless solder pot, PID control, temperature variation<±2°C PCB rail Double waves, height adjustable Can be connected directly with other equipment IR preheating, PID control, temperature variation<±2°C Stainless solder pot, PID control, temperature variation<±2°C PCB rail Double waves, height adjustable Can be connected directly with other equipment Hot air preheating, PID control, temperature variation<±2°C Stainless solder pot, PID control, temperature variation<±2°C PCB rail Double waves, height adjustable Optional cold air cooling Can be connected directly with other equipment 4 IR preheating zones, PID control, temperature variation<±2°C Titanium solder pot, Computer control, temperature variation<±2°C PCB rail Double waves, height adjustable Optional cold air cooling, top and bottom cooling Can be connected directly with other equipment Optional nitrogen Max. PCB width 250 mm 250 mm 300 mm 350 mm, custome width available PCB conveyor height 750±10 mm 750±10 mm 760±10 mm 750±20 mm PCB conveyor speed 0~1.2 m/min 0~1.8 m/min 0~1.8 m/min 0~2 m/min Preheating length 700 mm 700 mm 1200 mm 1800 mm Preheating zones 1 1 1 (more optional) 4 Preheating mode IR IR IR IR standard, hot air optional Preheating temperature room to 180°C room to 180°C room to 200°C room to 200°C Preheating power 2 kW 4.5 kW 7.5 kW 12 kW Solder types leaded leaded, lead-free leaded, lead-free leaded, lead-free Cooling mode Forced air Forced air Forced air or optional cold air Forced air or optional cold air Wave solder pot power 5 kW 8 kW 11 kW 11 kW Solder pot capacity 60 kg 180 kg 350 kg 400 kg Solder pot temperature room to 280°C room to 280°C room to 300°C room to 300°C Temperature control PLC PLC PLC standard, computer optional PC, Windows XP Flux tank capacity 3 L 5.2 L 5.2 L 5.2 L Power Single phase, 220V 3 phase, 5 lines, 380V 3 phase, 5 lines, 380V 3 phase, 5 lines, 380V (or 220V) Starting power 8 kW 13 kW 25 kW 23 kW Normal operation power 5 kW 5.5 kW 7.5 kW 8 kW Compressed air requirement 12.5 L/min 12.5 L/min 12.5 L/min 12.5 L/min Size (LxWxH) 1.3 x 1.0 x 1.6 m 2.3 x 1.0 x 1.8 m 2.6 x 1.2 x 1.6 m 4.3 x 1.36 x 1.68 m Weight 85 kg 600 kg 1000 kg 1350 kg Contact to Order Contact to Order Contact to Order Contact to Order

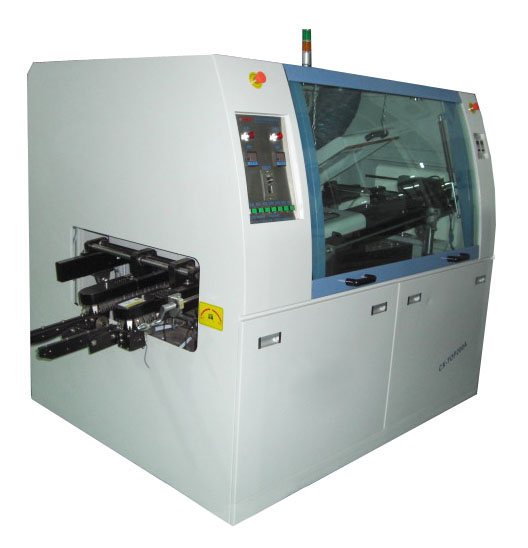

TWS-100 wave soldering machine Price: $6750.00 TWS-100 Specifications: Control panel, no computer necessary Adjustable width conveyor with titanium fingers Automatic fluxing Single wave, adjustable height Three cool down fans Temperature to 350°C, good for lead free 70Kg solder capacity MD-150DS MD-250DS pic
