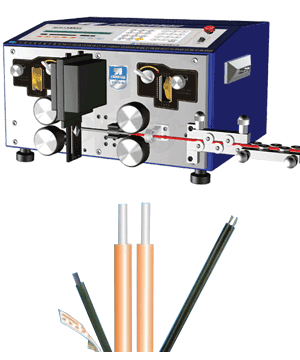

ZDBX-2 Stripping and Cutting Machine


FULLY COMPUTERIZED UNIT WITH LCD -DISPLAY; STORES UP TO 248 INSTRUCTIONS. IMPROVED FEATURES ENSURE "ZERO" WASTAGE , WHEN OPERATING UNDER INSTRUCTIONS. STOPS AUTOMATICALLY WHEN IT REACHES THE END OF THE COIL WIRE.
 Specification
MODEL: ZDBX-2
MEASUREMENT: W430xD340xH250 mm
WEIGHT: 35kg
POWER SUPPLY: AC 220V
POWER CONSUMPTION: 260W
STRIPPING LENGTH: 0.1--30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2±0.002 L)mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG # 12-30
PROCESSING CAPACITY: L=100 mm, 90pcs/min
