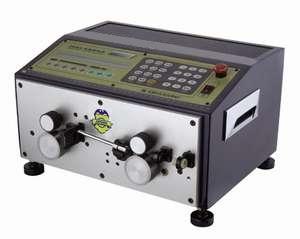

ZDBX-1 Stripping and Cutting Machine


ECONOMICAL MODEL, COMPUTERIZED UNIT WITH LCD -DISPLAY; STORES UP TO 248 INSTRUCTIONS. IMPROVED FEATURES ENSURE "ZERO" WASTAGE , WHEN OPERATING UNDER INSTRUCTIONS. STOPS AUTOMATICALLY WHEN IT REACHES THE END OF THE COIL WIRE.
 Specification
MODEL: ZDBX-1
MEASUREMENT: W360xD288xH200 mm
WEIGHT: 20kg
POWER SUPPLY: AC 220V or 110V
POWER CONSUMPTION: 240W
STRIPPING LENGTH: 0.1--30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2±0.002 L)mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG # 18-30
PROCESSING CAPACITY: L=100 mm, 85pcs/min
