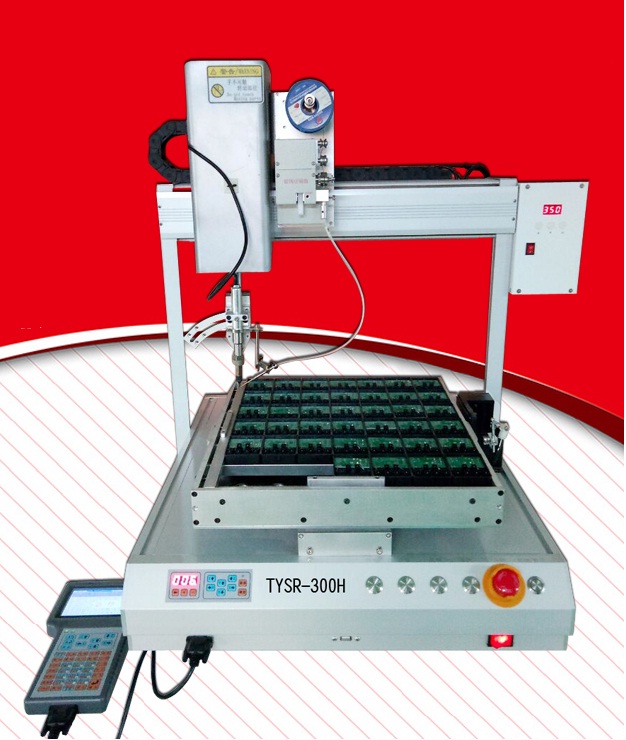

TYSR-300H Automatic Soldering Robot

Specifications


l          Four axes; 360 degree rotation

l          Working area: 300x300x100mm

l          Max working table load: 10Kg

l          XY axes max speed: 500mm/S; Z: 350mm/S

l          XY repeat precision: ±0.02mm

l          Max programming capacity: 999 posiitions

l          Dimension: 520x600x720mm

l          Power: 220V single phase

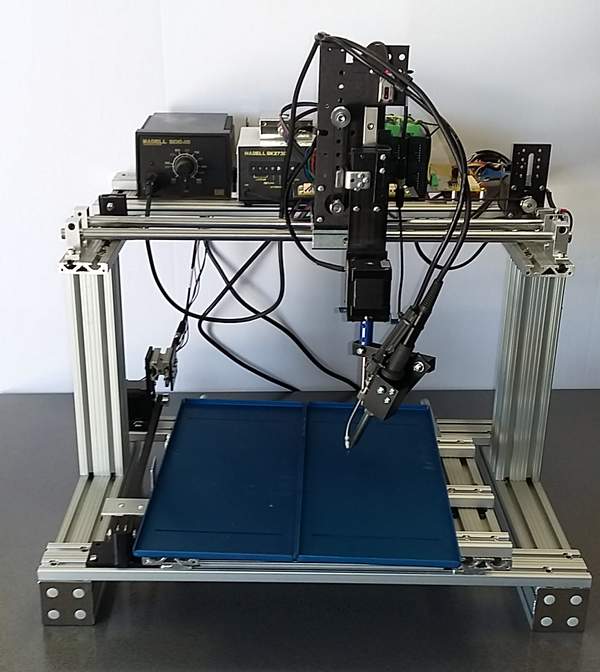

MSR-818 Automatic Soldering Robot

Specifications


l          Four axes; 360 degree rotation

l          Working area: 250x350x50mm

l          Max working table load: 10Kg

l          XY axes max speed: 500mm/S; Z: 350mm/S

l          XY repeat precision: ±0.02mm

l          Max programming capacity: no limit

l          Dimension: 600x600x550mm

l          Power: 110V AC
