Features:
1. The automatic solder self-feeders are usable with a variety of soldering
stations and soldering irons.
2. Feeding speed and time adjustable, controlled by either the hand switch
or foot pedal switch
3. Auto and manual feeding modes
4. ESD safe
Note:Soldering station not included in QK373 |
|
Specifications:
|
|
Power Consumption
|
6W |
|
Feeding Time(auto)
|
0-4S |
|
Feeding Speed
|
4.5-26mm/s |
|
Backing
|
0-5mm |
|
Control Mode
|
Auto/Manual |
|
Diameter of Solder Wire
|
0.6-1.6mm |
|
Solder Wires Compatiable
|
≤1kg(roll) |
|
Weight
|
1.5kg |
|
Dimension
|
107x110x215mm |
|
|
|
Notes:
1 QK373 self-feeder can be used with the following soldering stations and
soldering irons:QK936, QK702, AT8502.
2 Please choose solder diameter when purchasing QK373.
3 Adjust solder diameter ring in accordance with solder diameter.
4 Please choose guide tube set in accordance with solder diameter and soldering
station.
|
|
| Available models |
Price |
Purchase |
| QK373-06, 0.6mm solder diameter |
$148.00 |
 |
| QK373-08, 0.8mm solder diameter |
$148.00 |
|
| QK373-FT, Foot pedal for QK373 |
$19.50 |
|
|
|
|

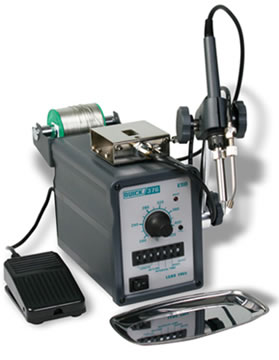

Features
1. High frequency current heating, temperature controlled by K-type sensor, rapid temperature rising and thermal recovery.
2. Automatic soldering wire breaking, ESD safe design
3. Micro computer control, temperature adjustable by buttons, digital temperature
calibration, auto-sleep function.
4. Auto and manual feeding modes available. Feeding times adjustable.
5. Feeding speed, length and interval time can be adjusted, with adjustable backing function.
6. Pedal switch and hand switch available.
7. May only be used as a lead free soldering station.
8. Can prevent soldering wire from spattering during soldering process.
Specifications
| Power consumption |
90W |
| Voltage |
AC 220V |
| Temperature range |
200°C- 480°C |
| Temperature stability |
±2°C(stationary air, no load) |
| Tip to ground resistance |
< 2 ohm |
| Tip to ground potential |
< 2mV |
| Motor |
Step motor |
| Feeding speed |
about 2.7mm/s-27mm/s(36°/s-360°/s) |
| Feeding length |
0-150mm |
| Feeding interval time |
0-2.7s |
| Backing time |
0-0.9s (about 0-25mm; constant speed: 360°/s) |
| Feeding mode |
Auto (1-9)/Manual (0) |
| Diameter of soldering wire |
0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6(mm) |
| Weight |
about 3.3kg |
|
|
