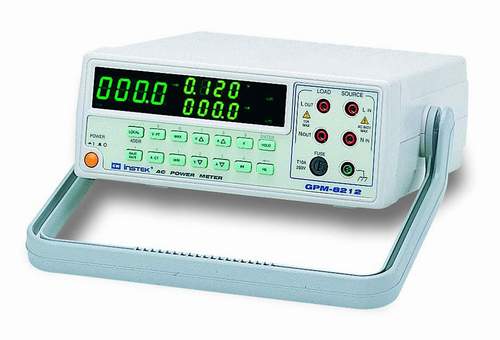

| SPECIFICATIONS |
Voltage |
|
Range |
5V, 10V, 20V, 40V, 80V,
160V, 320V, 640V total 8 ranges by auto-range or manual |
|
Measurement Type |
True rms |
|
Input Resistance |
>1MΩ |
|
Max. Input
Voltage |
1000V (peak), 700V
(rms) |
|
PT Ratio
Setting |
1 ~ 9999 |
Accuracy (at
23°c+5°C)
(Sinewave) |
+ 0.1% of reading + 0.1% of range |
|
| Current |
|
Range |
160mA, 320mA, 640mA,
1.280A, 2.560A, 5.120A, 10.24A, 20.48A total 8 ranges by auto-range or
manual |
|
Measurement Type |
True rms |
|
Input Resistance |
0.01Ω |
|
Max. Input
Current |
30A (peak), 20A
(rms) |
|
CT Ratio Setting |
1 ~ 9999 |
Accuracy (at
23°C+5°C)
(Sinewave) |
+ 0.1% of reading + 0.1% of range |
|
| Watt |
|
Measurement
Range |
0.32mW
~13.10kW |
|
Measurement
Type |
True rms |
Accuracy (at
23°C+5°C)
(Sinewave) |
+ 0.2% of reading + 0.2% of range |
|
| Power Factor |
|
Range |
0.001 ~
1.000 |
|
Computation |
W / (V x A) = Power Factor
(PF) |
|
| Frequency |
|
Measurement
Range |
40Hz ~
400Hz |
|
Accuracy (at 23°C+5°C) |
+ 0.2% of reading |
|
| General |
|
Display |
4 digits 0.56" LED and 2
sets of 4 digits 0.4" LED |
|
Minimum Input |
2% of
reading |
|
Response Time |
2
cycles/sec |
|
Overload
Indicating |
" O.L " |
|
| Power
Source |
AC 86 ~ 265V,
50/60Hz |
|
| Accessories |
Instruction manual x 1,
Power cord x 1 |
| Option: RS-232 or RS-485 with disk |
|
| Dimensions & Weight |
251(W) x 91(H) x 291(D)
mm, Approx. 1.6kg |
|
